PortFi Commercial EV Charging Solution · Smart Level 1 Station & Software Package

Introducing the world's first OCPP-based smart level 1 commercial EV charging station! Why "smart level 1" for commercial charging?

1. Avoid costly electrical upgrades and take advantage of existing power outlets
2. Support long dwell time and low mileage EVs at transit park & ride facilities, airport parking, hotel, fleet domiciles, etc. Charge up to 16A at 120V (1.9 kW), an equivalent of 40-70 miles/10-hour
3. Monitor station status, manage access, control charging, and view energy history with OCPP-based smart charging hardware and software

PortFi Smart Level 1 Commercial EV Charging package includes:

• One (1) PortFi Smart Premium 4G Level 1 EV Charging Station (16A/1.9kW or 12A/1.4kW)
  • Pedestals sold separately
• Complimentary 2GB of 4G data, equivalent to 6-10 years of commercial use
• Complimentary lifetime access to PortFi Station Hub charging management dashboards (the "Essential" tier software subscription)
• 3-year Manufacturer Warranty and Technical Support

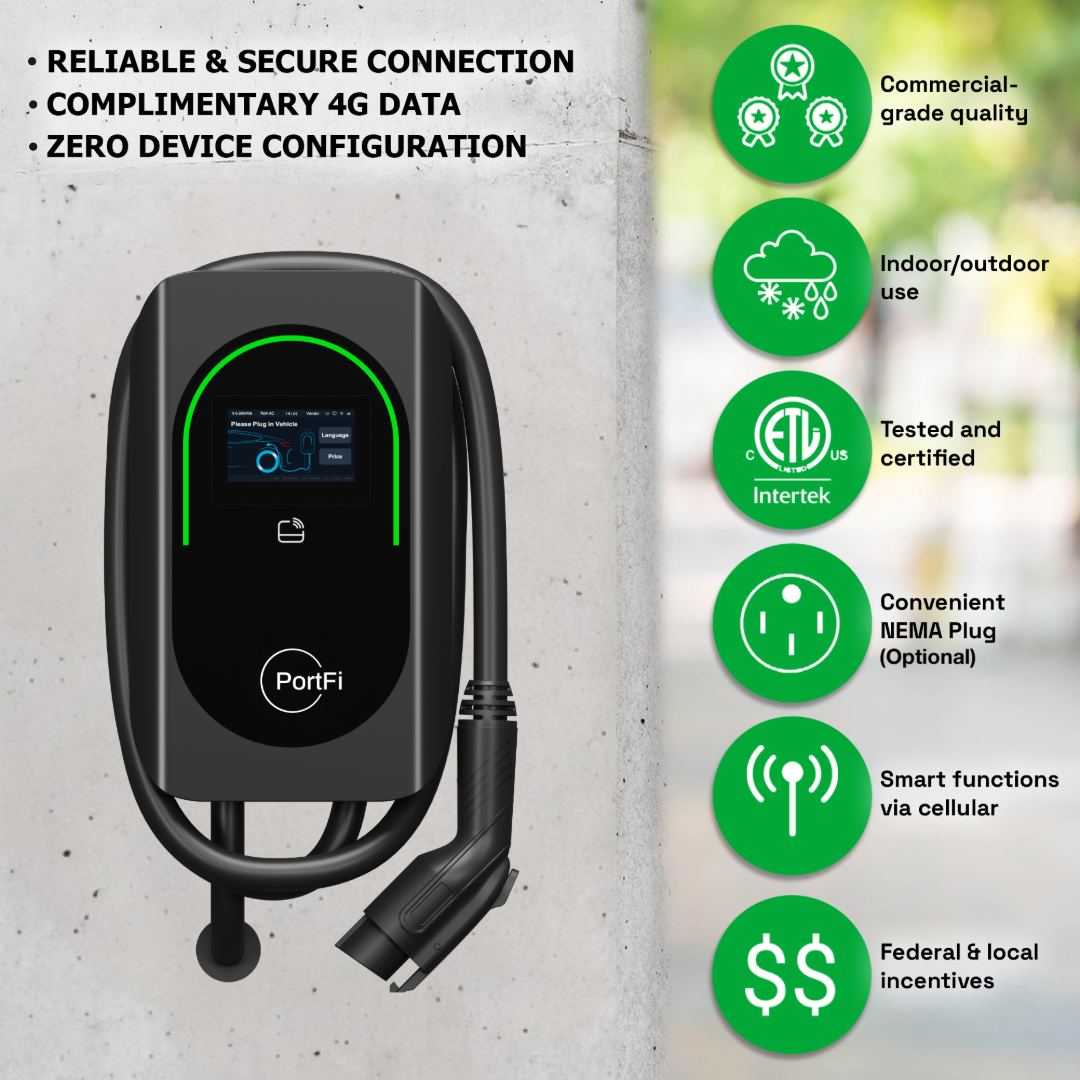

Key Specifications of the PortFi Smart Premium 4G Level 1 EV Charging Station:

• Charge up to 16A at 120V (1.9 kW), an equivalent of 40-70 miles/10-hour
• RFID-enabled with 2 included RFID cards (more available)
• Optional NEMA 5-15 or 5-20 plugs to take advantage of existing power outlet without electrical upgrades
• 4G connectivity with integrated sim card

• Complimentary 2GB of data (support 6-10 years of typical commercial use) and renewable at $15 per 500MB with PortFi
• Eliminate any initial device configuration steps and be ready to use as soon as the device is powered on
• SAE J1772 charging port with 18ft cable, compatible with all EVs in North America including Tesla (require adapter comes with vehicle)
• ETL safety certified to UL2594, UL2231-1/-2, CSA C22.2#280 standards; FCC certified
• Safety protections: over-voltage, under-voltage, over-current, over-temperature, ground fault, earth fault, control pilot fault, surge protection
• Commercial-grade built quality: IP65 water-resistant and IK08 impact protection ratings, allowing for indoor and outdoor uses
• Smart charging functions based on OCPP 1.6J industry standard

• Product dimensions: 14"x10"x4"

• Product weight: 12 lbs
• Operating environment: -22F to 122F, up to 95% non-condensing relative humidity

Key Features of the PortFi Station Hub Charging Management Application:

• Complimentary charging station dashboard & console: view station status, charging & energy history and execute smart charging functions
  • 3 Charging Modes: plug & charge, app-control, scheduled charging (learn more)
  • Remote start/stop charging
  • Adjust charging speed
  • Set electric current limit by hour
  • View charging data and history
  • Assign & suspend RFID tags
• Advanced functions at Business+ or Fleet+ tiers (requires monthly subscription):
• Payment, billing & driver app
• Enhanced compatibility with any OCPP-based stations
• Load management algorithm
• EV battery state and location
• Custom development
• Frequent updates with functional improvement and new features

For use case assessment or order customization, please contact us at order@portfi.biz or schedule a demo.

Important Notes:

• Typical order quantity: 100-300 units
• Current production lead time: 120 days
